FHH Series (Four Head Horizontal – Frames)

  • FHH-8080HS, FHH-8010HS, FHH-8012HS – Horizontal High Speed Four Head Welders, PVC Welding

The FHH Series Horizontal High-Speed Four-Head Welders improve efficiency by welding all four corners of two frames or sashes at once, automatically unloading both tiers. Featuring a servo-driven parallel welding cycle, they deliver faster production times and exceptional accuracy. With precise heat plate positioning for sloped sills, the FHH Series ensures strong, clean, and consistent welds—perfect for high-volume production.

Features & Specifications

  • Servo Controlled Parallel Welding Cycle
  • True Multi-Tier Independent Clamping System
  • Accurate Control of Heat Plate Position for Sloped Sill/Notched Welding
  • Maximum Weld Size FHH-8080HS - 96" x 102" (including nail fin)
  • Maximum Weld Size FHH-8010HS - 96" x 120" (including nail fin)
  • Maximum Weld Size FHH-8012HS - 96" x 144" (including nail fin)
  • Minimum Weld Size - 16" x 16" (including nail fin)
  • Horizontal Orientation for Ease of Loading and Unloading
  • Full Perimeter Guarding with Interlocked Light Curtain
  • Three Axis Servo Controlled Helical Rack and Pinion Positioning
  • Quick Change Fixture System
  • Automatic Low Pressure Pre-Camping During Loading and Positioning
  • Automatic Double Stacked Unloading and Transfer System
  • PC-Based Operator Interface with 22" Color Touch Screen Monitor, On-Board Self Diagnostics, Remote Access Capability, USB and Ethernet Connectivity, Windows 11 OS
  • Integrated Temperature Control
  • Fully Automated Cycle Control

Made in North America for the North American fenestration industry

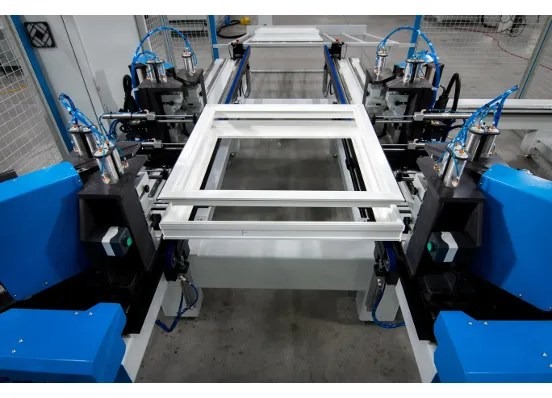

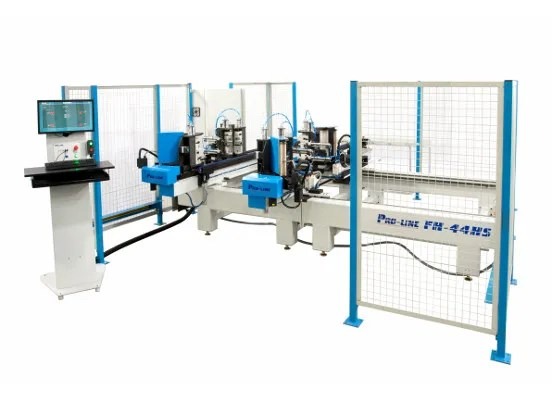

The FHH Series Horizontal High-Speed Four-Head Welder

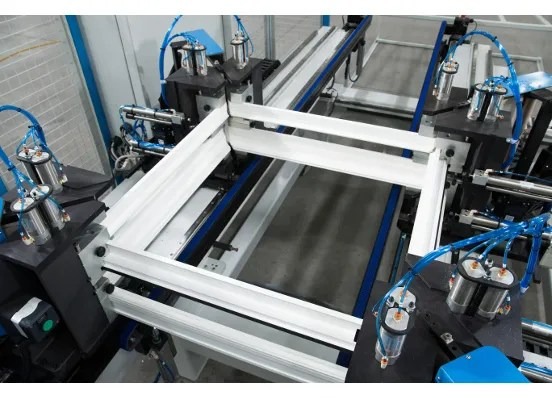

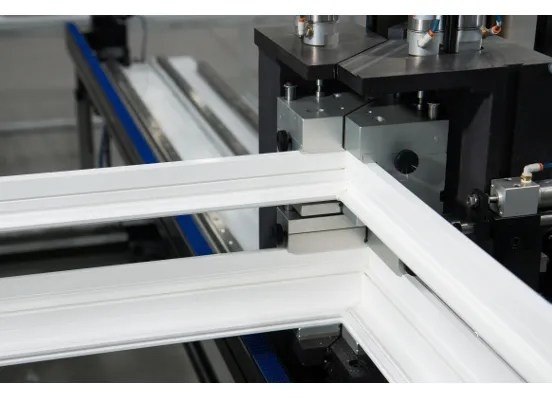

The FHH Series Horizontal High-Speed Four-Head Welder with product after welding
The FHH Series Horizontal High-Speed Four-Head Welder Unload System

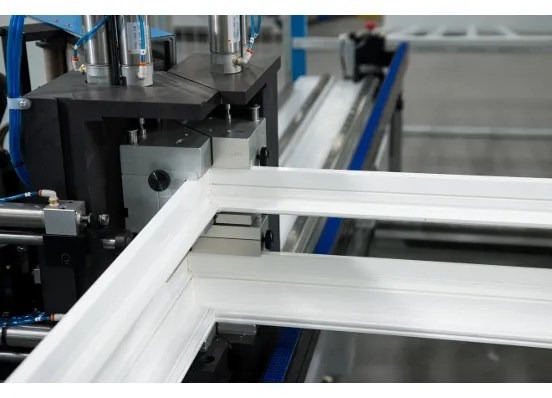

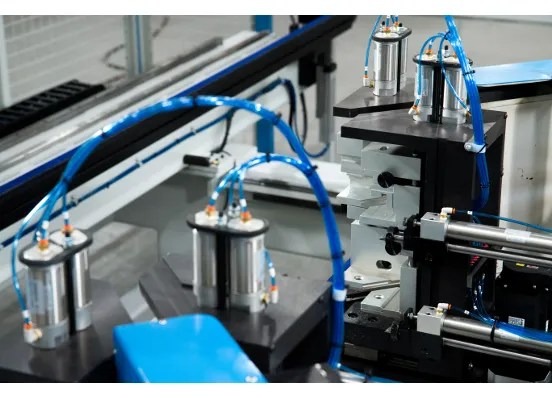

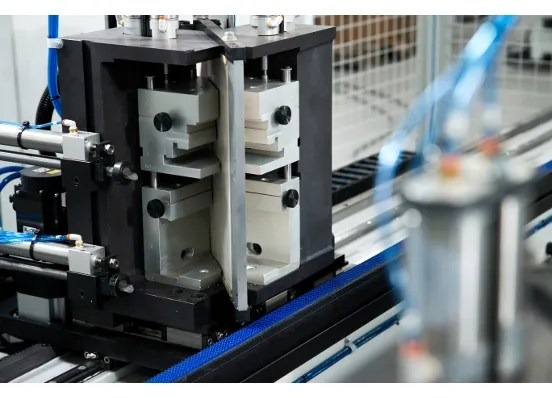

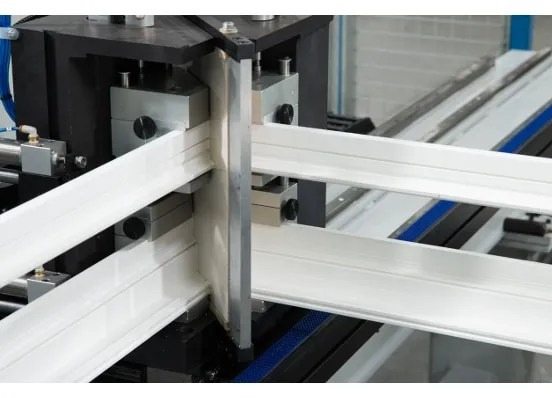

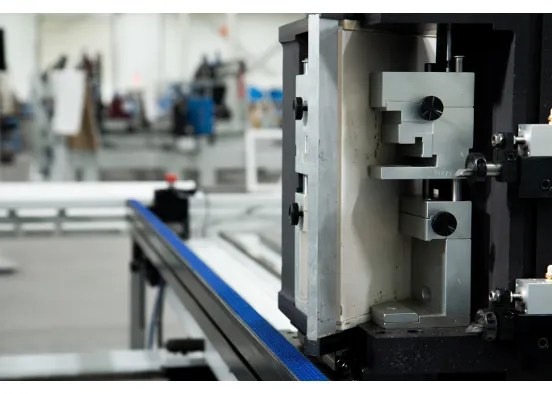

The FHH Series Horizontal High-Speed Four-Head Welder Fixtures

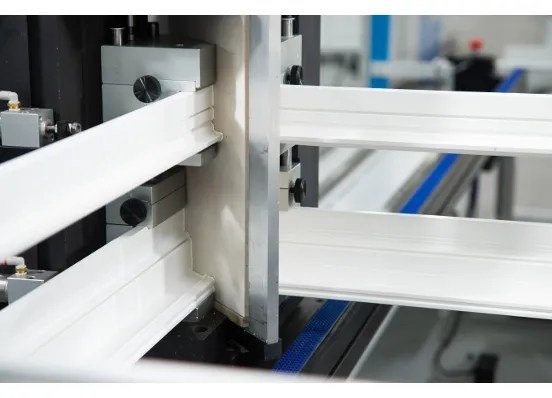

The FHH Series Horizontal High-Speed Four-Head Welder Fixtures 2

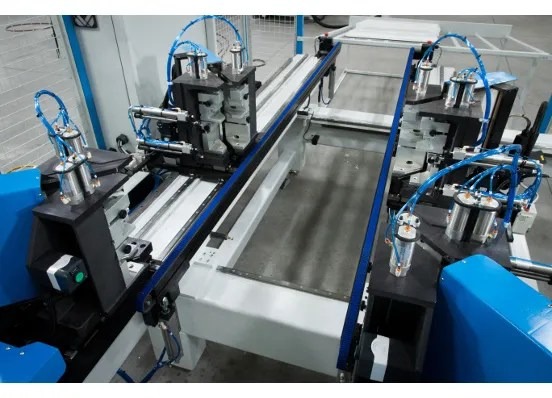

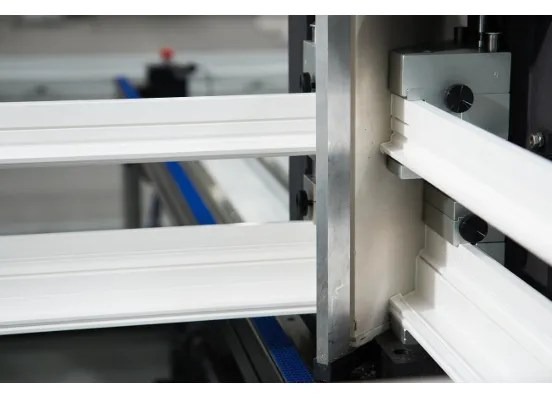

The FHH Series Horizontal High-Speed Four-Head Welder Independent tiers
